Pair of 30/30 Long Stroke Air Brake Chamber 3″ Long Stroke 3030 for semi Truck
111.98$
2
People watching this product now!
Delivery & Returns
We offer free next working day delivery on orders over 150 $, placed before 4pm Monday to Thursday. Note that next day delivery for orders placed after 4pm on Thursday, up to 4pm Friday, is usually Monday (excluding bank holidays). Estimated delivery for all orders placed over a weekend is Tuesday. Note that due to the size and weight of some products, next working day delivery is not available and additional carriage charges will apply. If you would like to return your goods, we will offer a full refund or exchange within 30 days of purchase. For full details, visit our delivery and returns page.
Warranty
All of our products come with a standard 1 year manufacturers warranty, however if you would like to discuss extending this warranty, please contact our customer service team email sales@meyizcompanyllc.com. For further warranty information from this specific manufacturer, visit our warranty page.
Description

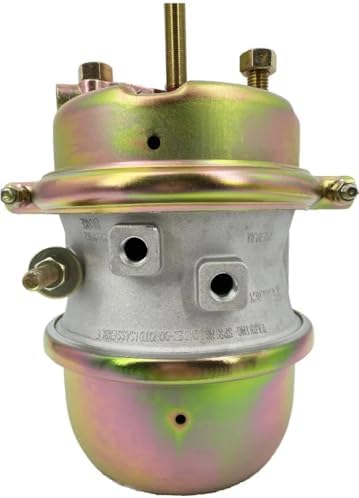

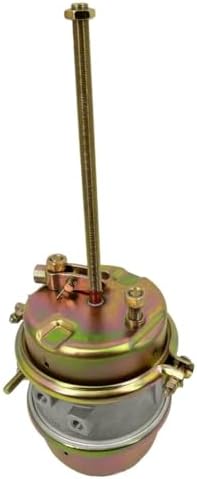

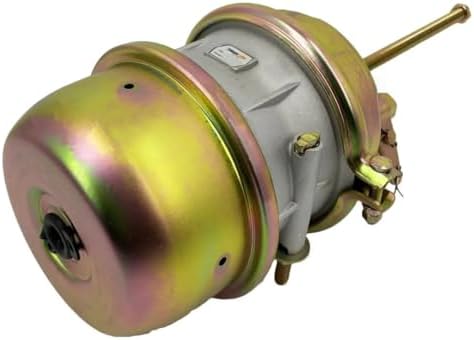

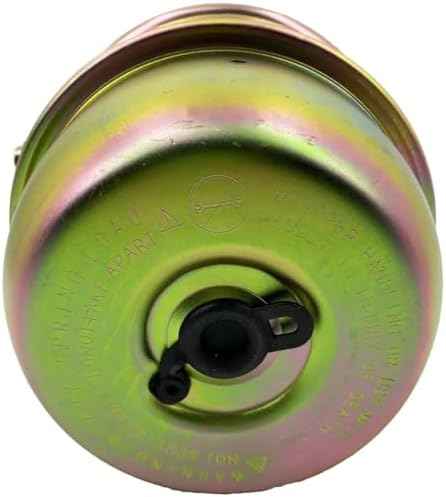

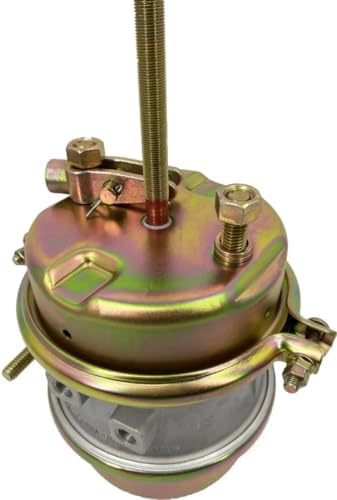

Long Stroke Air Brake Chamber Type 3030
– Superior Power Spring Technology; Advanced powder coating process; Resists corrosion and fatigue
– Double O-ring Center seal; Two o-rings for positive sealing and plastic bearings for long life
– World Class Diaphragm; High-quality rubber compound, resistant to heat and cold
– Rugged Service Housing; 9 gauge steel, powder coated
– Self-piloting Dust Shield
– Sizes to fit all drum brake applications
Specifications
Actuator Type Size:3030
Stroke Type:Long
Available Stroke:3″, 76mm
Length from mounting bracket to end of Spring Housing:9-7/8″, 251mm
Length of Piggyback:7-3/8″, 187mm
Dimension at rolled Spring Housing flange:8-5/16″, 211mm
Dimension at Service Clampband:10-3/16″
Pushrod Length from face of Service Housing:14″
Weight: 21.8 lbs. , 9.9 kg.
TYPE – Long Stroke Air Brake Chamber Type 3030
REPLACEMENT – Haldex GC3030L LC3030L GC3030LR
SPECS – Actuator Type Size: 3030 // Stroke Type: Long // Available Stroke: 3″, 76mm // Length from mounting bracket to end of Spring Housing: 9-7/8″, 251mm // Length of Piggyback: 7-3/8″, 187mm
FEATURES – Superior Power Spring Technology; Advanced powder coating process; Resists corrosion and fatigue
WARRANTY – 1-Year Unlimited Mile Warranty – includes assurances about the quality of the item, as well as a promise to provide replacement if something goes wrong within a set amount of time.
